[HYC-M]Hydrocyl™ family · Custom / OEM drawing

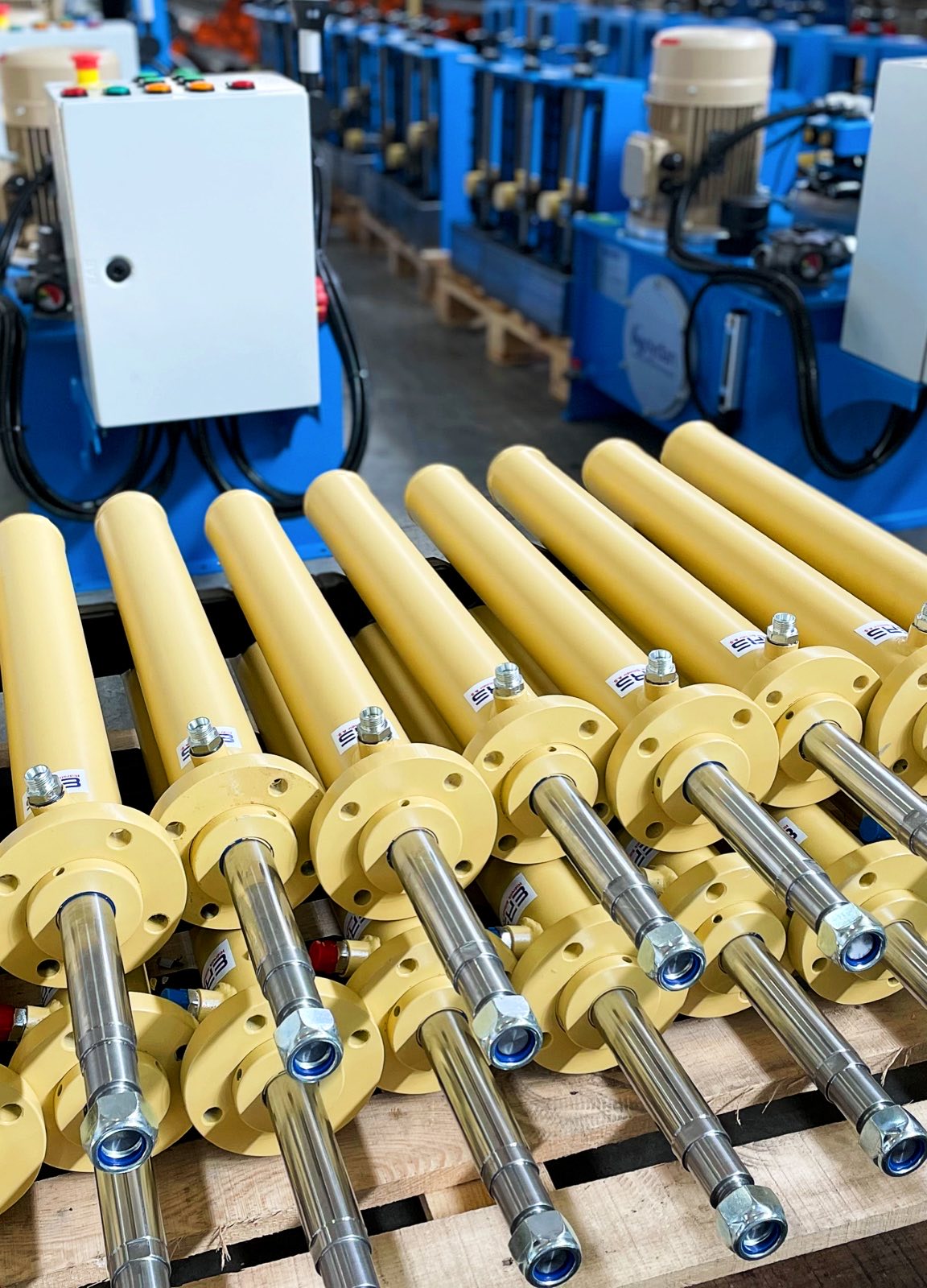

Mill-type and custom OEM cylinders HYC-M.
Custom envelopes built from the customer's own drawing — construction machinery, excavators and loaders, engineered and series-produced to OEM print. Typical sectors: construction machinery · excavators · loaders · attachments.
[01]Envelope
The numbers first.
Ø40–250
Bore
250–350
bar
100%
tested to ISO 10100 — 1.5× nominal
| Bore | Ø40 – 250 mm |
|---|---|
| Nominal pressure | 250 – 350 bar |
| Design basis | Customer / OEM drawing |
| Test pressure | 1.5× nominal per ISO 10100 |
Full dimension tables for each mounting style — A, B, H1–H6, M, L, R — are issued at quotation together with the 3D model and 2D GA drawing.
[02]Mountings & cushioning
Configure it to the machine.
| Code | Mounting | Common applications |
|---|---|---|
| MF3 / MF4 | Round flange at head / cap end | Press rams, injection moulding, bridge lifting |
| MP3 / MP5 | Rear clevis (plain) | Mobile equipment, linkage drives |
| MT4 | Intermediate trunnion | Swinging loads, cranes, tilting mechanisms |
| MS2 | Side lugs / foot mount | Machine tools, stationary fixtures |
| MX5 | Rod end threaded, stud rear | Compact actuation, short stroke |
| Spherical | Self-aligning clevis (spherical bearing) | Misalignment compensation, heavy earthworks |
| Code | Cushion type | Use case |
|---|---|---|
| 00 | None | Low speeds, no inertia |
| F0 | Fixed cushion, rod side only | Vertical loads, compact envelope |
| FF | Fixed cushioning both ends | Moderate speeds, symmetric duty |
| A0 | Needle-valve adjustable, rod side | Tunable deceleration |
| AA | Needle-valve adjustable, both ends | Heavy inertia, variable speeds |
| SA | Slow-damping profile with needle valve | High mass, vertical application |
Materials per catalogue §6: E355+SR honed tube (ISO H8, Ra ≤ 0.4 µm), C45E chromed rod (ISO f7, 25–40 µm, HV ≥ 850), sealing exclusively Kastaş / Trelleborg / other European brands. Cushion sizing verified by energy-dissipation calculation.
